This Kit includes winch, remote, carrier, 7.5' power lead with quick connect plug for front of vehicle and hawse fairlead. Front receiver and rear power lead sold separately.
|
|
|
|
|
|

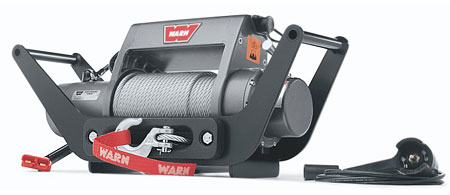

| XD9000i MULTI-MOUNTTM PORTABLE | |
| All the power and reliability of the XD9000i in a
portable package. No-load retrieval line speed is fast-38
feet/minute. Integrated control pack protects the winch's
electrical components, and the 4.6hp Series WoundTM
motor delivers big torque and power. Plugs into any
standard 2" Class III receiver hitch and gives you the
ability to move the winch from the front or back of your
rig. Power is supplied through quick connect plugs. A good
choice for full-size rigs and heavier recovery situations.
This Kit includes winch, remote, carrier, 7.5' power lead with quick connect plug for front of vehicle and hawse fairlead. Front receiver and rear power lead sold separately. |
|
| XD9000i MULTI-MOUNTTM SPECS/PART NUMBERS | |
| Part Number: PN 37441 | |
| Rated Line Pull: 9000 lbs. (4080 kgs.) single-line | |
| Motor: 12V 4.6hp, Series WoundTM | |
| Remote Control: Remote switch, 12' (3.7m) lead | |
| Geartrain: 3-Stage Planetary | |
| Gear Ratio: 156:1 | |
| Lubrication: Aeroshell #17 | |
| Clutch (freespooling): Sliding Ring Gear | |
| Brake: Automatic Direct Drive Cone | |
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) | |
| Weight: 104 lbs. (47 kgs.) | |
| Wire Rope: 125', 5/16" diameter (38m, 8mm diameter) | |
| Fairlead: Hawse | |
| Recommended Battery: 650 CCA minimum for winching | |
| Battery Leads: Front heavy-duty 7.5'/2.2m with quick connect plug | |
| Finish: Argent Powder Coat | |
