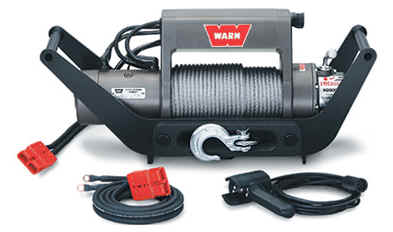

This Kit includes winch, remote, carrier, 7.5' power lead with quick connect plug for front of vehicle and hawse fairlead. Front receiver and rear power lead sold separately.
|
|
|
|
|
|
| X8000i MULTI-MOUNT PORTABLE | |
| Bring the X8000i Multi-Mount along for security
when traveling off-road and leave it at home when
driving around town. This winch features a 4.8 hp Series
WoundTM motor and our proven three-stage
planetary gear train. It delivers a no-load line retrieval
speed of 42 feet/minute, and a full-load pull rate of over 8ft. per minute.
Plus its integrated control pack and
direct drive cone braking system are reliable and quiet.
Perfect for compact trucks or SUV's. This Kit includes winch, remote, carrier, 7.5' power lead with quick connect plug for front of vehicle and hawse fairlead. Front receiver and rear power lead sold separately. |
|
| X8000i MULTI-MOUNT SPECS/PART NUMBERS | |
| Part Number: PN 31875 | |
| Rated Line Pull: 8000 lbs. (3630 kgs) single-line | |
| Motor: 4.8hp, Series WoundTM | |
| Remote Control: Remote switch, 12' (3.7m) lead | |
| Geartrain: 3-Stage Planetary | |
| Gear Ratio: 216:1 | |
| Lubrication: Aeroshell #17 | |
| Clutch (freespooling): Sliding Ring Gear | |
| Brake: Automatic Direct Drive Cone | |
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) | |
| Weight: 90 lbs. (41 kgs.) | |
| Wire Rope: 100', 5/16" diameter (30m, 8mm diam.) | |
| Fairlead: Hawse | |
| Recommended Battery: 650 CCA minimum for winching | |
| Battery Leads: Front heavy-duty 7.5'/2.2m with quick connect plug | |
| Finish: Argent Powder Coat | |
