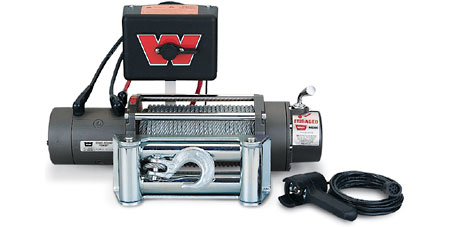

M6000 SELF-RECOVERY WINCH
This is our medium-to-light duty winch. But it's no weakling. Designed to be compact, its 4.8 hp Series WoundTM motor can still pull 6,000 lbs., making it ideal for smaller vehicles with big ideas.
M6000 SPECS/PART NUMBERS
Part Numbers: PN 45880 (12V DC), PN 458802 (12V DC, CE), PN 465052 (24V DC, CE), PN 37960 (12V, DC, CE Short Drum)
Rated Line Pull: 6000 lbs. (2720 kgs) single-line
Motor: 12V 4.8 hp, 24V 2.1 hp, Series WoundTM
Remote Control: Remote switch, 12' (3.7m.) lead
Geartrain: 3-Stage Planetary
Gear Ratio: 156:1
Lubrication: Aeroshell #17
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs.)
Wire Rope for PN 45880, 458802, 465052: 80', 5/16" diameter (24m, 8mm diam.)
Wire Rope for PN 37960: 50', 5/16" diameter (15m, 8mm diam.)
Fairlead for PN 45880, PN 458802, PN465052: Roller
Fairlead for PN 37960: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
Nuts/Bolts: PN 39625
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.

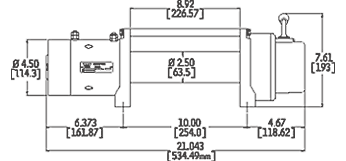

Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H (534mm L. x 160m D. x 193mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
